🔄 LangGraph Agent State Machine Specification¶

This document details the state machine topology, node transitions, checkpointing boundaries, and state schema for the Yojaka AI agent workflow.

🌐 Interactive Documentation: Available on the Yojaka AI Documentation Site.

🗺️ State Machine Topology¶

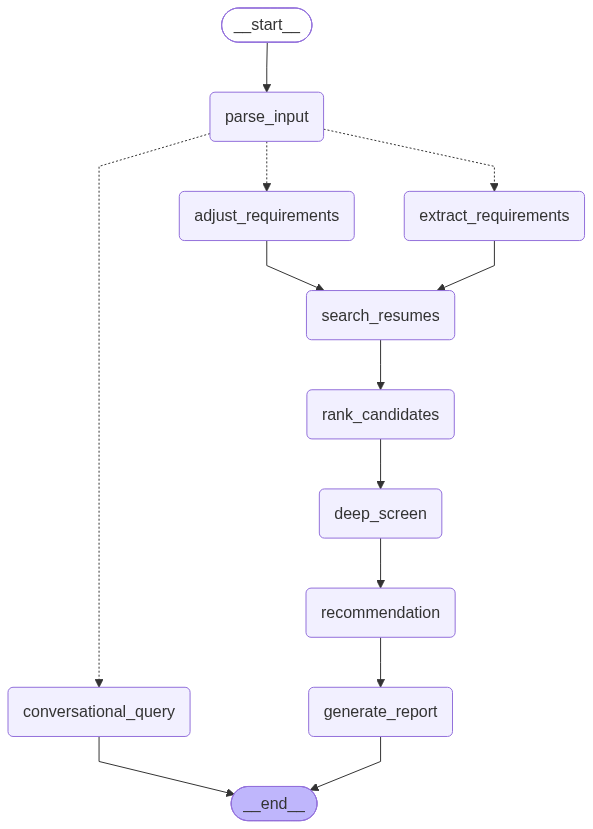

The agent workflow is structured as a 9-node StateGraph compiled with in-memory MemorySaver checkpointing keyed by thread_id:

📋 State Graph Nodes & Transitions¶

1. Ingress & Calibrated Margin Routing (ADR-009, ADR-018)¶

• __start__ → parse_input: Ingress message normalization, timestamp initialization, and clean session field setup.
• parse_input → Native LangGraph 1.x RoutingCommand(goto=..., update={...}) with compile-time destination routing:
  • Structural Fast Path (0ms): Multi-line pasted JDs or empty initial state dispatch directly to extract_requirements.
  • In-Memory Query Cache (0ms): Instant replay for identical user messages within the current session.
  • Calibrated Margin Gating (<2ms, $0 token cost): Evaluates \(\Delta = \text{Top1} - \text{Top2}\). If \(\Delta \ge 0.12\) and \(\text{Top1} \ge 0.55\), dispatches directly to destination intent without LLM latency.
  • Structured Ambiguity Escalation: When \(\Delta < 0.12\), escalates to a lightweight structured LLM (IntentResolution) with candidate intent choices to guarantee 0% misrouting.
  • Destination Targets:
    • extract_requirements: Dispatched when a new job description is pasted or requirements are absent.
    • adjust_requirements: Dispatched on slider adjustments, qualification edits, or recruiter refinement feedback.
    • conversational_query: Dispatched on candidate Q&A, comparison inquiries, or live external web research.

2. Retrieval, Screening & Synthesis Cascade¶

• extract_requirements / adjust_requirements → search_resumes: Queries CompositeVectorStore and cached in-memory BM25Okapi index using JobMatcher with two-stage cross-encoder reranking.
• search_resumes → rank_candidates: Applies multi-factor hybrid scoring (dense cosine 50% + BM25 35% + qualification satisfaction 15%) and slices the coarse Top 10 shortlist.
• rank_candidates → deep_screen: Executes parallel dual-rubric structured evaluations (Technical Architecture 60% + Domain Fit 40%) bounded by Semaphore(max_concurrent=2) over the top 5 candidates.
• deep_screen → recommendation: Applies deterministic safety guardrails (missing must-have skill / experience deficit overrides) and generates 3–5 tailored technical interview questions.
• recommendation → generate_report: Compiles side-by-side comparison matrix and candidate evaluation summaries.
• generate_report → __end__: Persists final report in checkpoint state and returns to recruiter UI.
• conversational_query → __end__: Returns conversational answer or web search synthesis without modifying active candidate shortlist.

🗃️ State Schema (AgentState)¶

from typing import TypedDict, List, Optional, Dict, Any
from langchain_core.messages import BaseMessage

class JobRequirements(TypedDict, total=False):
    title: str
    must_have_skills: List[str]
    nice_to_have_skills: List[str]
    min_experience_years: int
    education_level: str
    other_constraints: List[str]
    skill_expansions: dict[str, List[str]]

class CandidateMatch(TypedDict, total=False):
    candidate_id: str
    name: str
    score: int
    matched_skills: List[str]
    missing_skills: List[str]
    experience_years: int
    education: str
    relevance_excerpts: List[str]
    strengths: List[str]
    gaps: List[str]
    improvement_suggestions: str
    screening_status: str
    screening_reasoning: str
    interview_questions: List[str]
    # Phase 18: Parallel Dual-Rubric Structured Evaluation fields
    technical_score: Optional[float]
    domain_fit_score: Optional[float]
    technical_strengths: Optional[List[str]]
    technical_gaps: Optional[List[str]]
    sourcing_strengths: Optional[List[str]]
    sourcing_gaps: Optional[List[str]]
    architecture_notes: Optional[str]
    trajectory_notes: Optional[str]

class AgentState(TypedDict, total=False):
    messages: List[BaseMessage]
    requirements: JobRequirements
    shortlist: List[CandidateMatch]
    previous_shortlist: List[CandidateMatch]
    ranking_explanation: str
    coarse_screen_limit: Optional[int]
    deep_screen_limit: Optional[int]
    recommendation_limit: Optional[int]
    current_round: int
    final_report: str
    feedback_pending: bool
    user_feedback: str
    errors: List[str]
    # Phase 18: Calibrated Margin Routing Telemetry
    routing_decision: Optional[Dict[str, Any]]

🛡️ Invariant Guarantees (ADR-011, ADR-012, ADR-018)¶

1. Stateless Credential Isolation (CWE-312): AgentState strictly isolates domain metadata. API keys and secrets are never serialized into checkpoints.
2. Functional Copy-on-Write Immutability: All node transitions construct fresh dictionary instances ({**c, ...}) preventing mutation side-effects and ensuring checkpoint replay safety.
3. Deterministic Score Invariance: Dual-rubric evaluation calculates composite scores mathematically (\(\text{Score} = 0.60 \times \text{Tech} + 0.40 \times \text{Domain}\)) without hallucinated score drifts across repeated evaluations.
